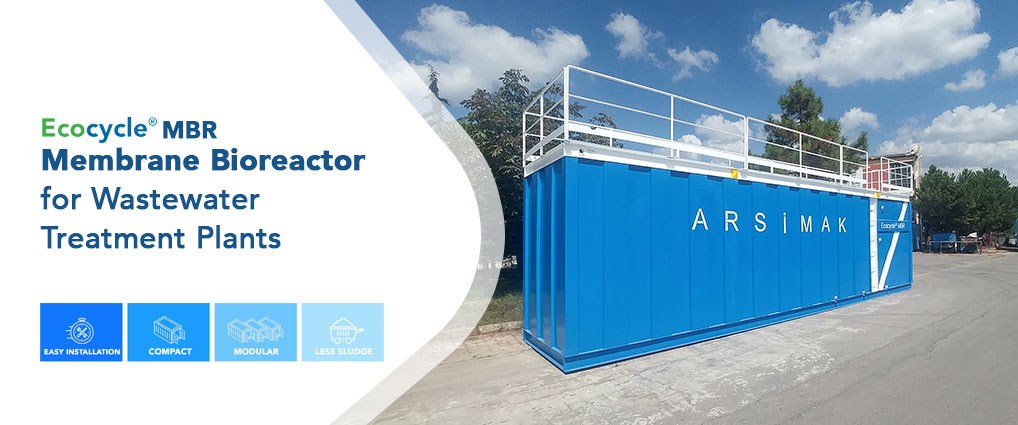

    Ecocycle MBR mobile wwtp system is a highly effective biological treatment process based on a combination of conventional activated sludge process and membrane bioreactor.

    Ecocycle MBR compact systems contains all necessary stages, such as physical treatment ( primary treatment), anoxic chamber, aeration, clarification, disinfection, sludge storage section and all the mechanical - electrical equipments, piping, and instrumentation inside its compact structure as a mobile system.

A typical Ecocycle Containerised MBR system is made up of the following components;
  • Automatic Screw Screen
  • Chemical dosing systems
  • Anoxic, anaerobic and aerobic tanks for biological treatment

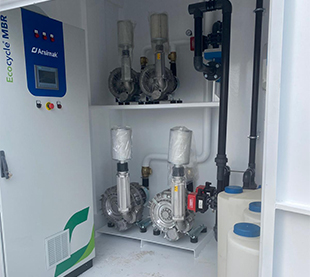

  • Air blowers for the aeration process and for membrane scouring
  • Pump set for the MBR permeate suction and for sludge recirculation
  • Cleaning tank for periodic chemical enhanced backwash of the MBR membranes

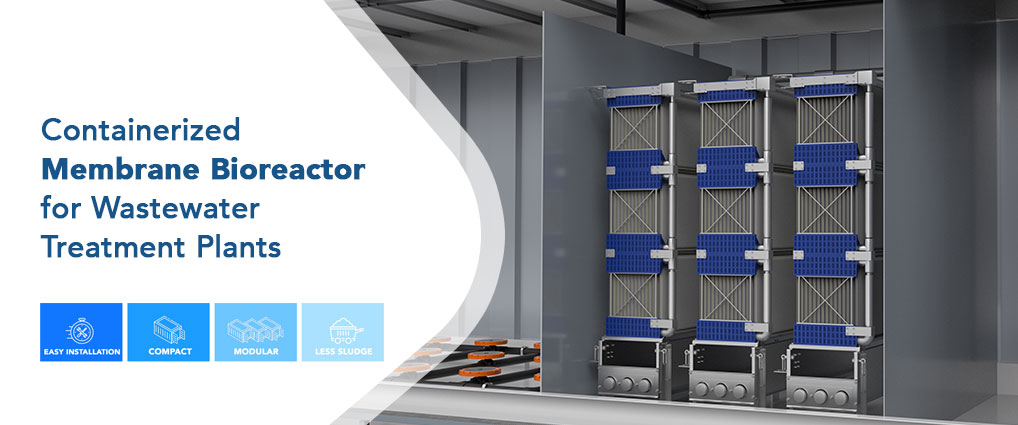

MBR Kaset     Ecocycle MBR provides easy installation and operation. In a membrane bio-reactor (MBR) system, the biomass treats polluted water, while the membrane ensures the safe separation of the biomass from the cleaned wastewater. Traditionally, this separation process relied on solids settling in a secondary clarifier. In addition to better effluent quality, MBRs have the advantage to be operated with much higher MLSS (Mixed Liquor Suspended Solids) levels. Thus, an MBR plant requires less space than a conventional plant.

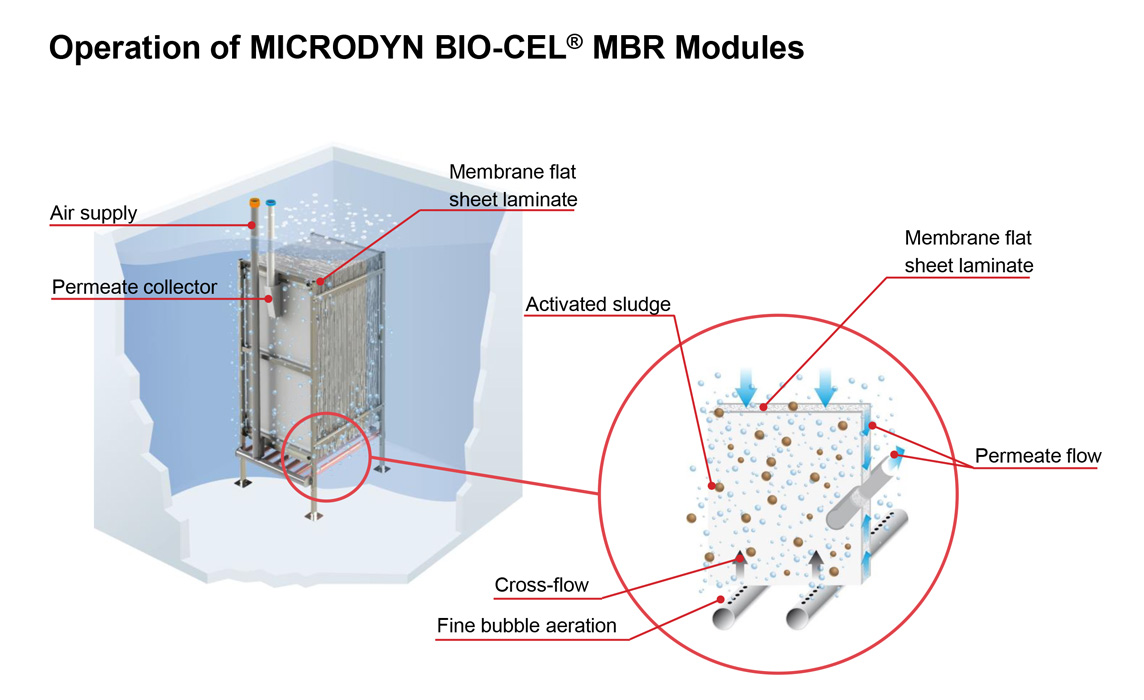

   The key elements of an MBR system are the membrane and the aeration. The membrane serves as a physical barrier for the retention of solids and bacteria. The aeration generates the cross-flow which transports the mixed liquor along the membrane surface. This cross-flow prevents the accumulation of sludge on the membrane surface, resulting in a consistent and reliable operation.

Ecocycle MBR Membrane Bioreactor 3D

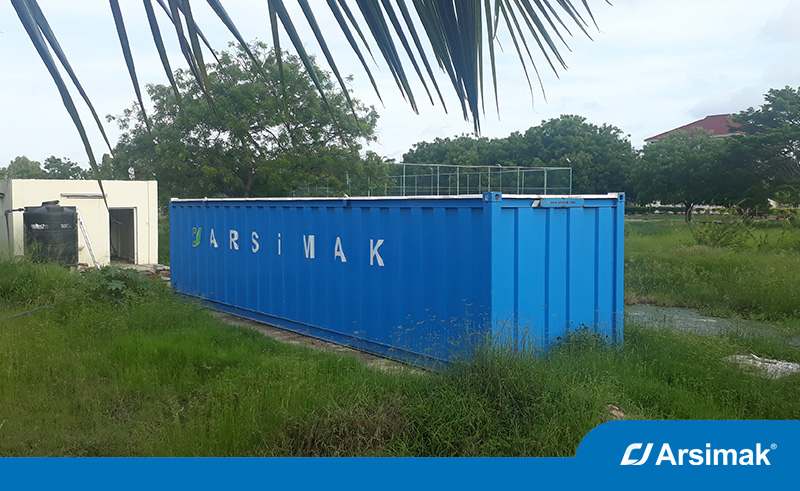

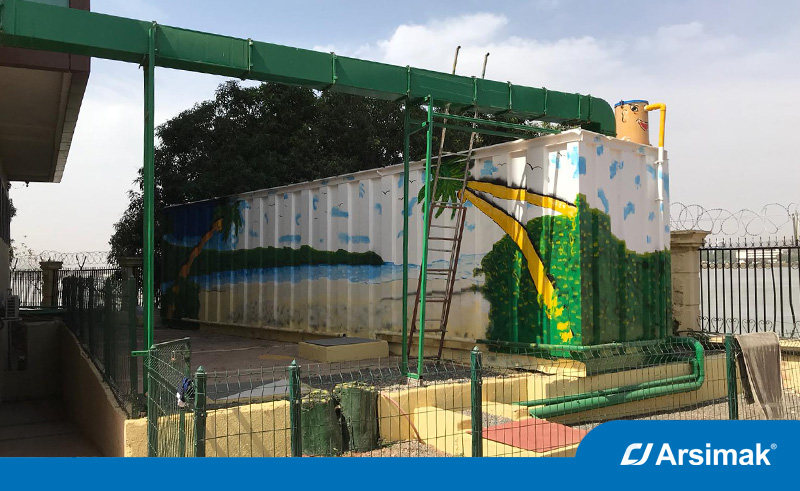

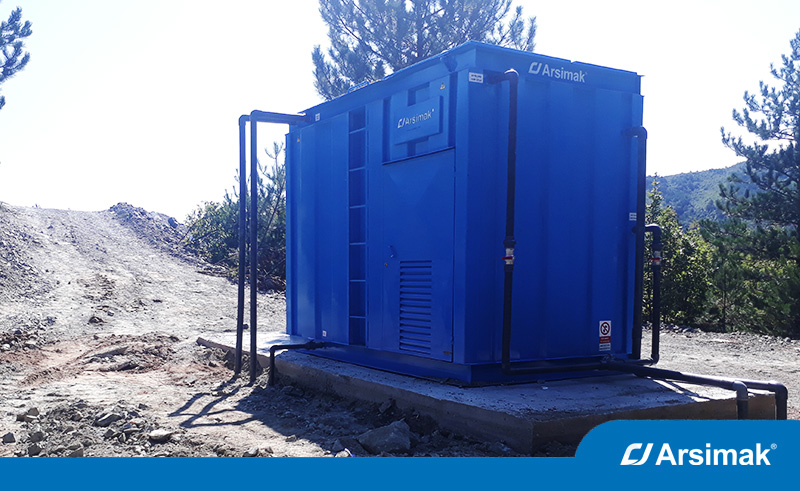

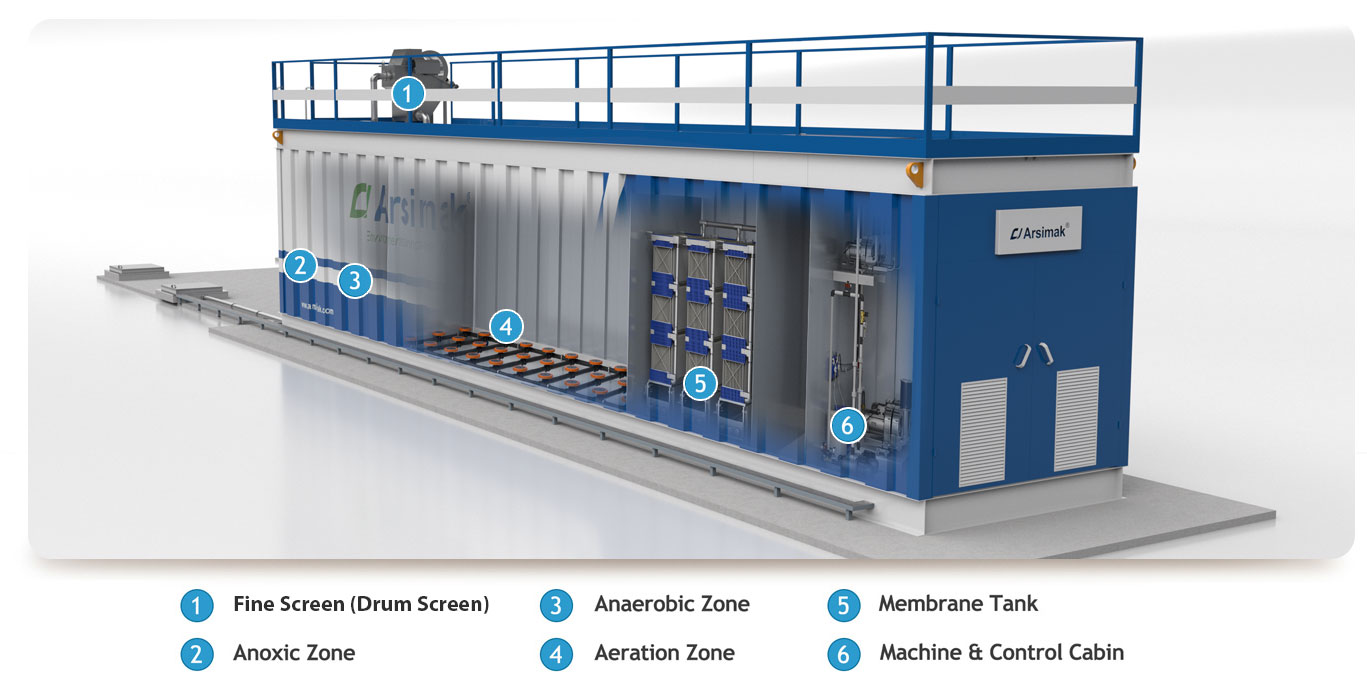

Containerised MBR Solutions
  • Screening
  • Anoxic Zone
  • Anaerobic Zone
  • Aeration Zone
  • Membrane Tank
  • Machine - Control Cabin
  • Ecocycle MBR 3D

    Compact treatment units - plants are covered under service and maintenance warranty. Our company provides replacement parts and technical service for the subsequent years.

    Mbr Membrane Bioreactor steps

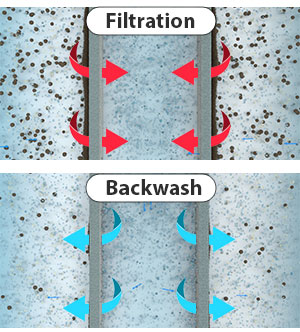

    Membrane Filtration: Filtration refers to the extraction of water from the feed water through the membrane (from the outside of the membrane to the inside) to produce permeate.
    During the filtration, Activated sludge accumulates on the membrane surface as the treated water is sent to the permeate tank.
    Some of this solid accumulation on the membrane surface is reduced with the help of air from diffusers located under the membrane modules.
    Membrane Backwash:
    Backwashing means a short period of time (20-30 seconds) during which the permeate flow is reversed through the membrane so that the permeate flows from the inside to the outside of the membranes.
    During the backwash, the aeration of the membrane tank continues, with the air from the diffusers and the water returned from the permeate tank cleaning the membrane surfaces.
    Advantage Proseptic

    Advantages of Ecocycle® MBR Membrane Bioreactor Systems

    • High Treatment Efficiency: MBRs produce high-quality effluent, meeting stringent discharge standards.
    • Compact Footprint: MBR systems require less space than conventional treatment plants.
    • Reduced Sludge Production: MBRs generate less sludge, simplifying waste management.
    • Energy Efficiency: MBRs operate efficiently, consuming less energy than traditional methods.
    • Sustainability: MBRs contribute to water conservation and reuse.

    What are the benefits of the Ecocycle® MBR biological container system treatment?

    The technology used is ideal for applications where trained operators are not in place or where minimal operator entry is required. Modular design makes it easy to increase the number of units according to capacity.
    That's why Ecocycle® MBR WWTP solutions are the best choice for a low-cost, automated and reliable wastewater treatment plant.

    • Ease of operation
    • Modular design allows expansion
    • Quick installation and start up
    • Low operating expenditure
    • Small footprint
    • Low energy consumption
    • Discharge quality to environmental standards
    • Fully automated

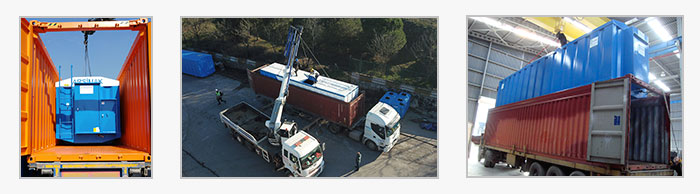

    Is it suitable for overseas loading?

    Arsimak designs and manufactures the Ecocycle® MBR units in suitable sizes when it will reach by ship transportation. Ecocycle® MBR can be transported 20ft./40ft./40ft.HC Open Top containers.

    Proseptic

    Are components and spare parts easy to supply? (OEM)

    Products and components are sourced from reputable suppliers and OEMs locally and internationally, providing you with the best quality possible. Arsimak Oem

    Does Arsimak provide After Sales Support ?

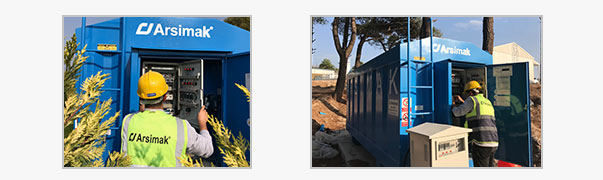

    Arsimak provides a wide range of after-sale support and services to help our customers make the most of their assets. Arsimak Services
